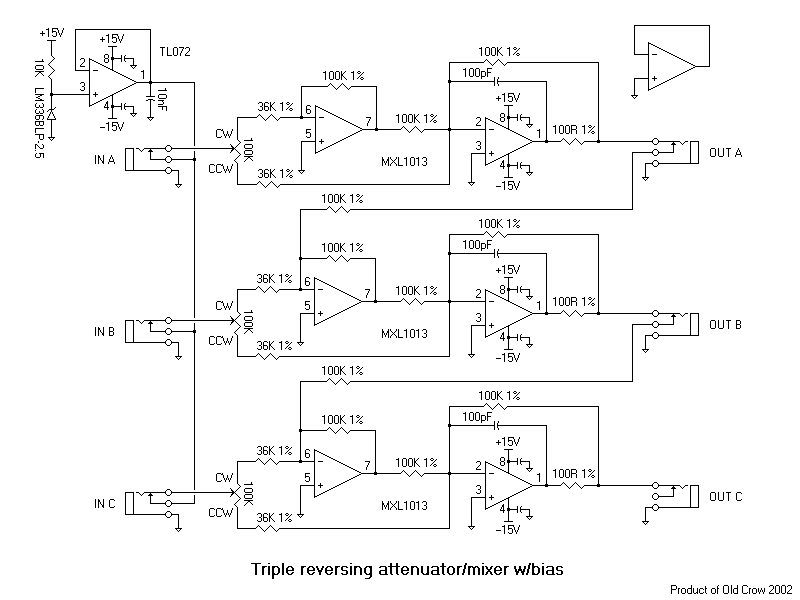

FYI, here is what I made for Robert: http://www.cs80.com/reversingb.gif I have a better version of it since then (temperature compensated reference). Crow /**/
Message
Re: [motm] Panning VCAs - a different approach
2004-09-13 by The Old Crow
Yahoo Groups archive
Message
2004-09-13 by The Old Crow
FYI, here is what I made for Robert: http://www.cs80.com/reversingb.gif I have a better version of it since then (temperature compensated reference). Crow /**/
