Thank, Bob,
That would be most helpful.
It would seem that the unit was mass produced at some time, but I have no description of what it was ever used on other than the Marcos.

Sent from Mail for Windows 10
Regards,
Larry

From: Robert Mann robert.h.mann@... [MarcosManiacs]
Sent: Thursday, June 27, 2019 3:38 AM
To: MarcosManiacs@yahoogroups.com
Subject: Re: [MarcosManiacs] Re: 1600 GT side window help.


Hi Larry

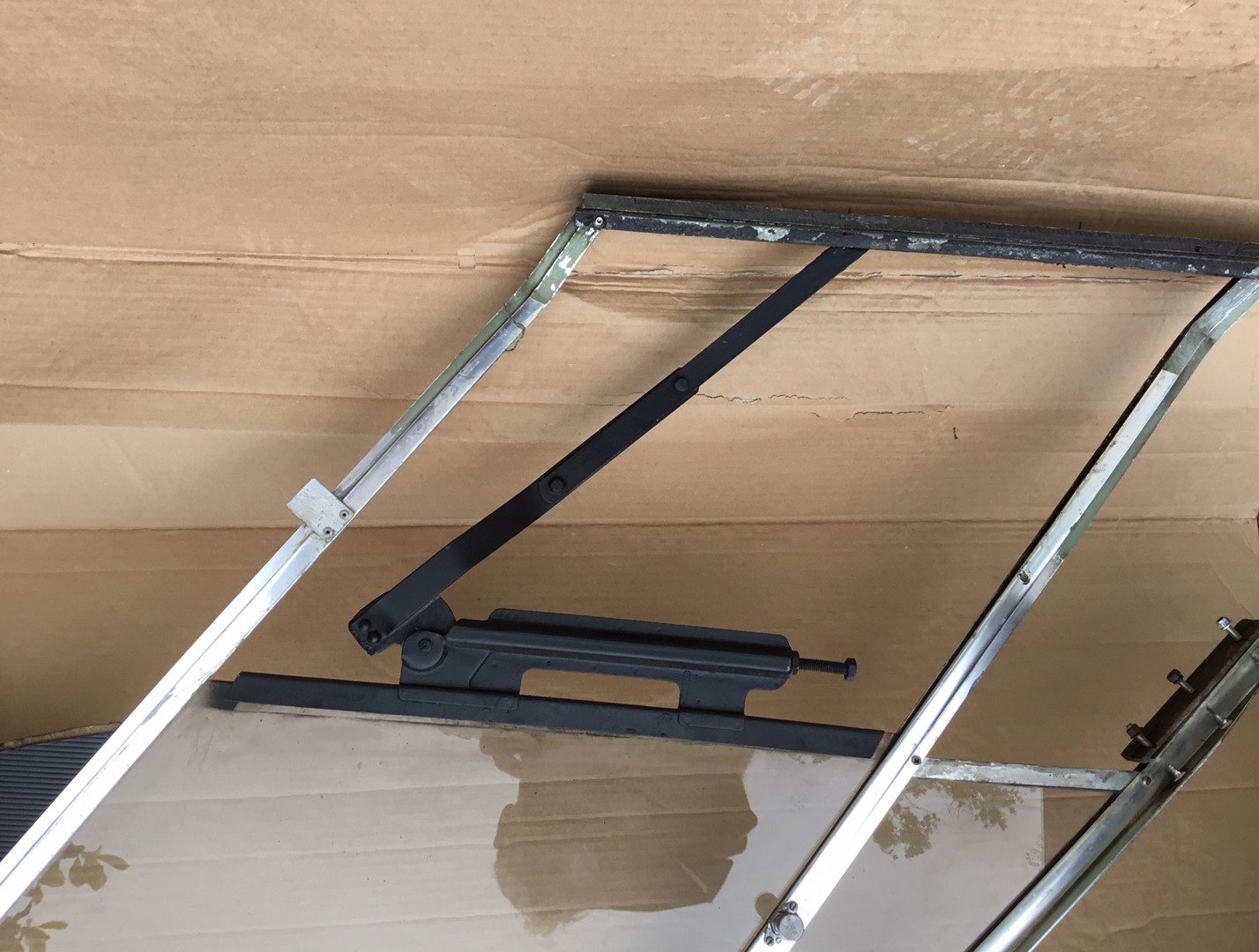

I will take more pictures and measurements for you today, it works on a very basic system of a
spring loaded section which can be adjusted by the bolt as seen in the picture this stops  the
glass from dropping or pushing  glass up by creating neutral balance of weight allowing you to just
push the glass up or down by hand the pressure is transferred down the pivoted  flat steel bar
 that runs freely in the horizontal channel at the bottom.
Regards
Rob

On 27 Jun 2019, at 02:30, Larry Meadows lmeadowsw@... [MarcosManiacs] <MarcosManiacs@yahoogroups.com> wrote:

Thank, Rob,
I have never seen one of these and would like to try to fabricate one for Greg.
Would it be possible to take pictures with the window at different levels? I need to know how it lifts and lowers; what parts move and in which direction.

Sent from Mail for Windows 10
Regards,
Larry

From: Robert Mann robert.h.mann@... [MarcosManiacs]
Sent: Wednesday, June 26, 2019 9:18 AM
To: MarcosManiacs@yahoogroups.com
Subject: Re: [MarcosManiacs] Re: 1600 GT side window help.


Hi Greg


O

I hope this helps
Regards
Rob
 Jun 2019, at 19:51, Larry Meadows lmeadowsw@... [MarcosManiacs] <MarcosManiacs@yahoogroups.com> wrote:

Thanks for your reply.
Greg is in need of the right hand side glass. Do you have any pictures of the lift mechanism so I can see if it is something I might be able to fabricate for Greg?

Sent from Mail for Windows 10
Regards,
Larry

From: meggsief Meggsief@... [MarcosManiacs]
Sent: Tuesday, June 25, 2019 11:38 AM
To: MarcosManiacs@yahoogroups.com
Subject: RE: [MarcosManiacs] Re: 1600 GT side window help.


I came to this thread late. Are you needing a template for window? If so I have a set from my 69 I can trace for you.

Regards
Hal
5353



Sent from my T-Mobile 4G LTE Device

-------- Original message --------
From: "Larry Meadows lmeadowsw@... [MarcosManiacs]" <MarcosManiacs@yahoogroups.com>
Date: 6/25/19 4:42 AM (GMT-07:00)
To: MarcosManiacs@yahoogroups.com
Subject: RE: [MarcosManiacs] Re: 1600 GT side window help. [2 Attachments]


Larry, here,
Thank y’all for coming to the aid of a frustrated owner.

Sent from Mail for Windows 10
Regards,
Larry

From: Robert Mann robert.h.mann@hotmail.com [MarcosManiacs]
Sent: Tuesday, June 25, 2019 4:04 AM
To: MarcosManiacs@yahoogroups.com
Subject: Re: [MarcosManiacs] Re: 1600 GT side window help.


Hi Greg
What year car and is it a woody as I've got my frames out at the moment mine is a 1968 1690gt woody non elect windows if this is the same as yours I can take a pattern and send it to you.
Regards
Rob
Get Outlook for Android


From: MarcosManiacs@yahoogroups.com <MarcosManiacs@yahoogroups.com> on behalf of GH356@... [MarcosManiacs] <MarcosManiacs@yahoogroups.com>
Sent: Tuesday, June 25, 2019 12:07:41 AM
To: MarcosManiacs@yahoogroups.com
Subject: RE: [MarcosManiacs] Re: 1600 GT side window help.


Ah, Larry I wish I knew the answer. Frankly, I'm so frustrated that the otherwise fantastic car has begun to loose its attraction for me. It's been about 5 years in progress, and there is light at the end of the tunnel, but I'm almost ready to throw in the towel. It's a late '68 and totally stock. The restorer lost the glass on the right side, and the window lift mechanisms for both sides. Guessing the window shape won't change, but I don't know which shape to tell you. I do have the original frames. But have yet to figure out how they mount. I'll try the early corvette lift mechanisms. Again, thanks for your help. Greg
