Hi all,
after completing (9 months work...) the overhauling of the CS80, that is amazingly playing now, I have opened a friends' CS60, that doesn't work (as usual... :-)
I am surprised for finding in all of the the M-voice boards two ICs, named m51623p and m51628p, instead of the IC8 and IC9 IG00153 and IG00158...
Is this normal? BTW, no sign of desoldering. All of the traces are immaculate.
The machine is pristine, and only two voice seem to play some sounds...
If they are correct (a newer or elder series?) is any modification needed?
Thanks

Fernando

According to this site, it appears to be the same part number:
http://www.wdgreenhill.com/manu/yamaha_s.htm

--- In yamahacs80@yahoogroups.com, "papinje" <fernandozarone@...> wrote:
>
> Hi all,
> after completing (9 months work...) the overhauling of the CS80, that is amazingly playing now, I have opened a friends' CS60, that doesn't work (as usual... :-)
> I am surprised for finding in all of the the M-voice boards two ICs, named m51623p and m51628p, instead of the IC8 and IC9 IG00153 and IG00158...
> Is this normal? BTW, no sign of desoldering. All of the traces are immaculate.
> The machine is pristine, and only two voice seem to play some sounds...
> If they are correct (a newer or elder series?) is any modification needed?
> Thanks
>
> Fernando
>

Regarding the voices not playing: check the contacts and conduction of all the (very thin...) wires running to the voice boards, if one them is faulty the entire voice might not sound anymore. I had it on my CS60; we could see that the KAS actually assigned a voice to play, but one of the voices didn't sound. One of the wires had a bad solder contact...

It's of tremendous help if you have one of these 'indicator' boards in your CS, that shows which voice is (or should be) playing:
http://groups.yahoo.com/group/yamahacs80/photos/album/35984432/pic/list

Hope you'll find the problem!

Cheers,
Rainer

--- In yamahacs80@yahoogroups.com, "Rainer" <rainer.keizer@...> wrote:
>
> According to this site, it appears to be the same part number:
> http://www.wdgreenhill.com/manu/yamaha_s.htm
>
> --- In yamahacs80@yahoogroups.com, "papinje" <fernandozarone@> wrote:
> >
> > Hi all,
> > after completing (9 months work...) the overhauling of the CS80, that is amazingly playing now, I have opened a friends' CS60, that doesn't work (as usual... :-)
> > I am surprised for finding in all of the the M-voice boards two ICs, named m51623p and m51628p, instead of the IC8 and IC9 IG00153 and IG00158...
> > Is this normal? BTW, no sign of desoldering. All of the traces are immaculate.
> > The machine is pristine, and only two voice seem to play some sounds...
> > If they are correct (a newer or elder series?) is any modification needed?
> > Thanks
> >
> > Fernando

And you try buying one off them... these guys advertise as if they have everything. Then, when you try getting one off them they say they will have to "order one in"... maybe a year down the line (after you've chased and chased them - they won't contact you!) they then tell you it's unavailabe!

I don't know why they still keep people hopes up by putting those part numbers on their site. Very annoying...;c(

--- In yamahacs80@yahoogroups.com, "Rainer" <rainer.keizer@...> wrote:
>
> According to this site, it appears to be the same part number:
> http://www.wdgreenhill.com/manu/yamaha_s.htm
>
> --- In yamahacs80@yahoogroups.com, "papinje" <fernandozarone@> wrote:
> >
> > Hi all,
> > after completing (9 months work...) the overhauling of the CS80, that is amazingly playing now, I have opened a friends' CS60, that doesn't work (as usual... :-)
> > I am surprised for finding in all of the the M-voice boards two ICs, named m51623p and m51628p, instead of the IC8 and IC9 IG00153 and IG00158...
> > Is this normal? BTW, no sign of desoldering. All of the traces are immaculate.
> > The machine is pristine, and only two voice seem to play some sounds...
> > If they are correct (a newer or elder series?) is any modification needed?
> > Thanks
> >
> > Fernando
> >
>

That's what I suspected indeed. I just used the site to point out that at least those people indicate that the TS's part numbers should be the same as the IG..... ones :-)

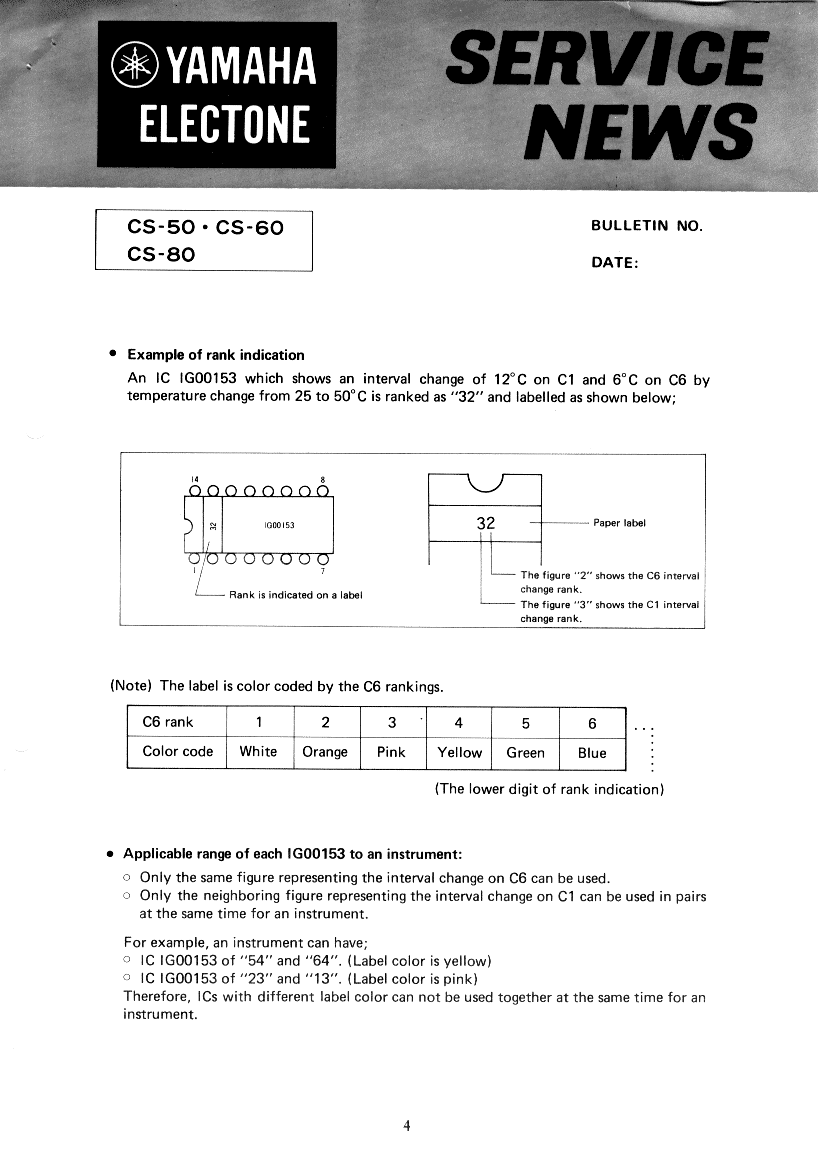

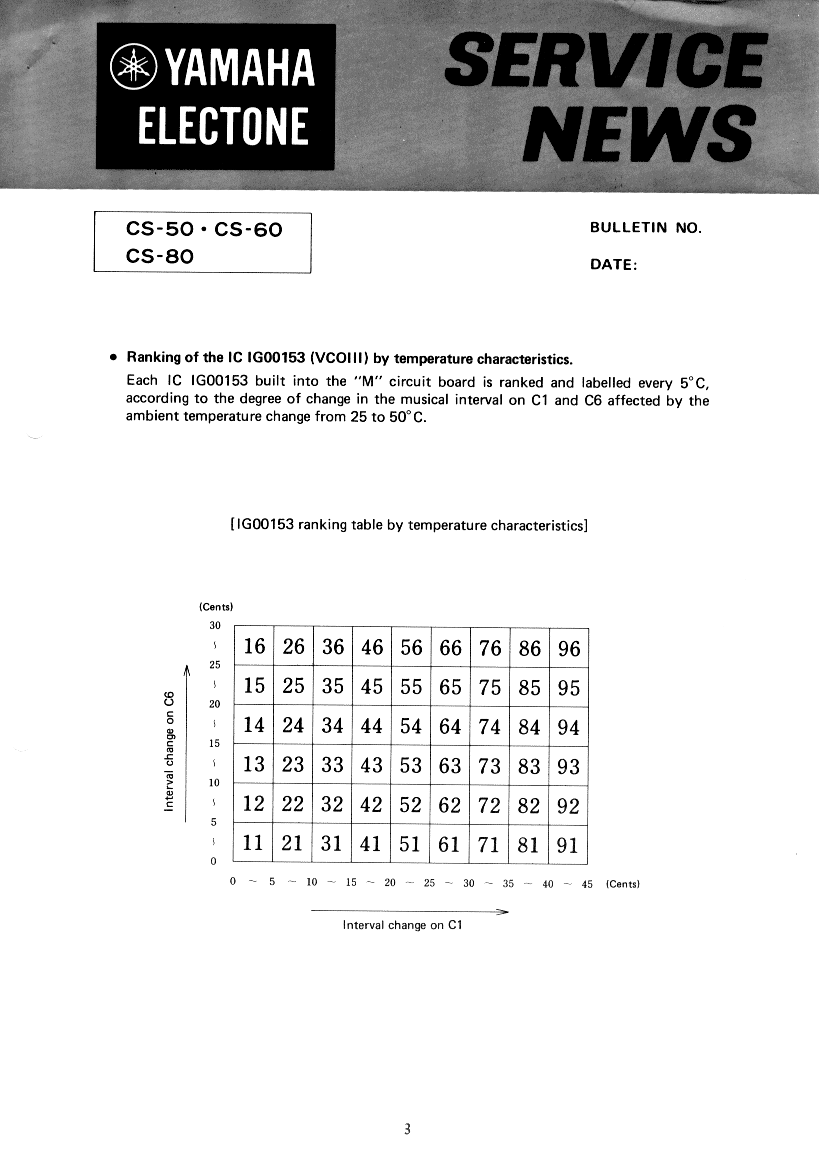

If anyone should ever replace a VCO IC, make sure its "Rank" is within the tolerance limits described by Yamaha! otherwise the difference in temperature response will lead them to behave differently amongst each voice, so you can never tune your CS as close as otherwise would be possible.
http://www.cs80.com/docs/service_bulletin/cs-80_service_news_3.gif
http://www.cs80.com/docs/service_bulletin/cs-80_service_news_4.gif

--- In yamahacs80@yahoogroups.com, "Quazimodo" <noddyspuncture@...> wrote:
>
> And you try buying one off them... these guys advertise as if they have everything. Then, when you try getting one off them they say they will have to "order one in"... maybe a year down the line (after you've chased and chased them - they won't contact you!) they then tell you it's unavailabe!
>
> I don't know why they still keep people hopes up by putting those part numbers on their site. Very annoying...;c(

Has anyone seen any failures of the "newer" unranked oscillators? I haven't, so far.

John Leimseider
Electronics Technician/ Technicien des instruments électroniques



Cantos Music Foundation/National Music Centre Project/Projet du Centre National de Musique
Second Floor, 134 - 11 Ave SE, Calgary AB T2G 0X5
