Re: [yamahacs80] Tuning questions (3)

2008-01-05 by JH.

Working on the KAS board and following this procedure

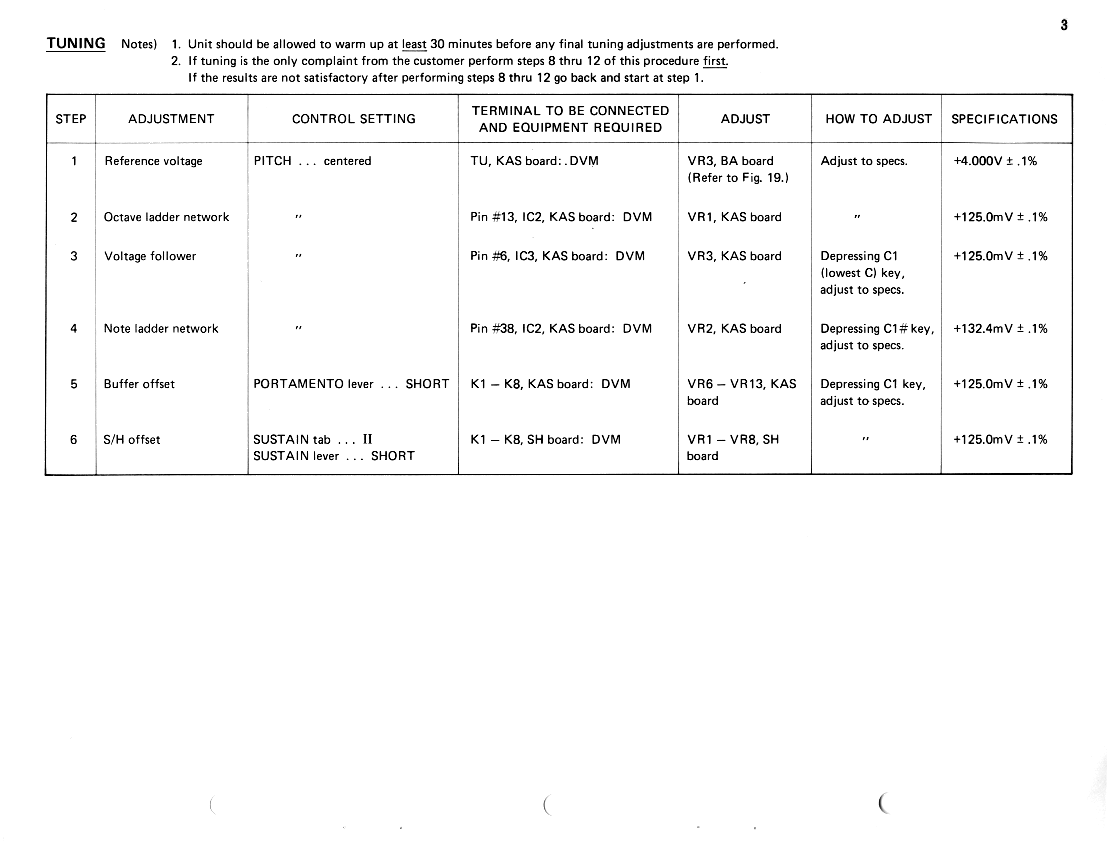

http://www.cs80.com/docs/adjustment/cs-80_adjustment_procedure_03.gif

To which GND point should I reference my measurements?
To the GND rail that holds the cards, or to a local GND point (EK ?) on the
KAS board ?

http://www.cs80.com/docs/adjustment/cs-80_adjustment_procedure_04.gif
(picture of KAS board)

JH.

Re: [yamahacs80] Tuning questions (3)

2008-01-05 by JH.

Ahh - ignore this.
I just measured both, and they are exactly the same.
They did an excellent job on GND distribution topology. :)

JH.
