Re: KLM-366B Board vs Schematic Discrepancy

2017-03-02 by axmonti@yahoo.ca

Hi Daniel,

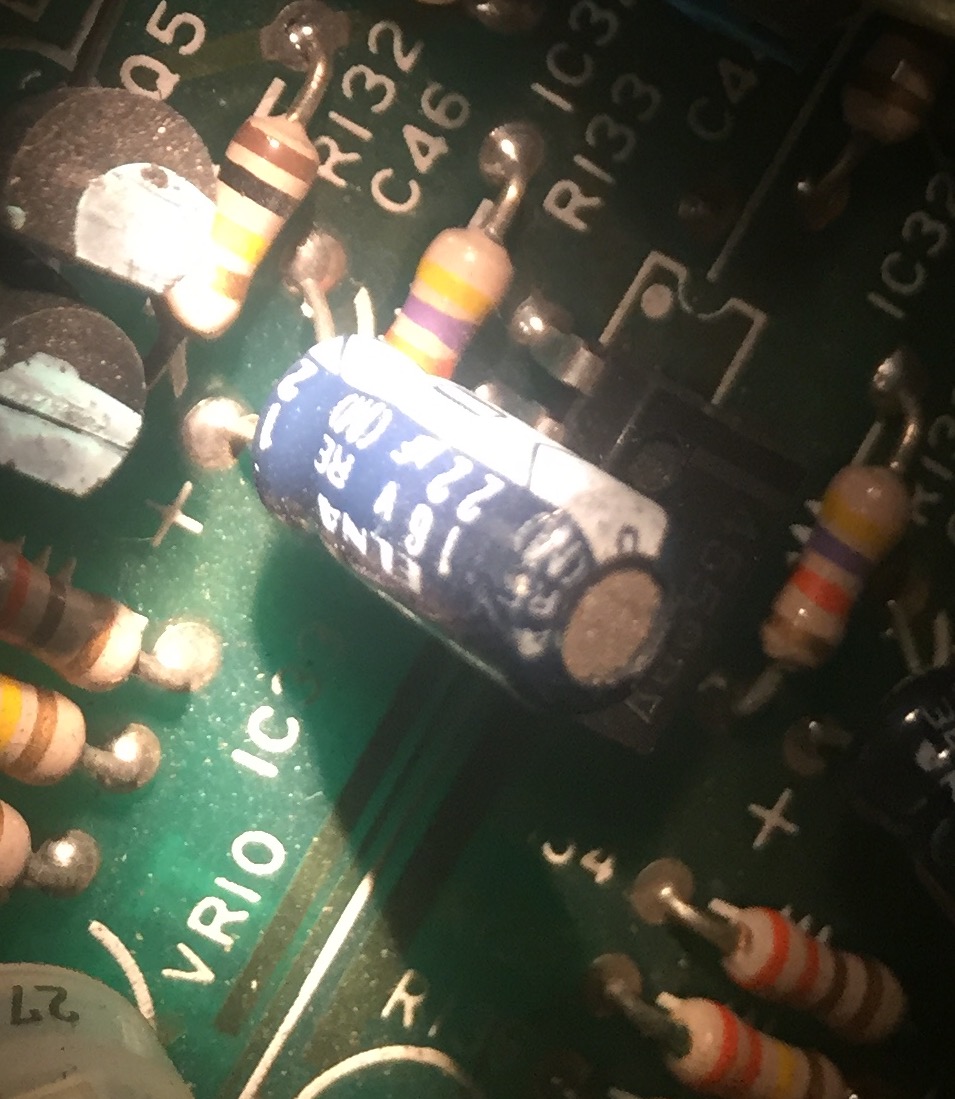

Not sure if there are any boards "versions" with 2.2uF and 4.7uF; my board definitely has 22uF and 47uF for C46 and C22, respectively (see attached pics - apologies for the potato quality). Can you tell if the board has been recapped in the past?

Hope this helps,
Andrew
