[sdiy] Tr-808 resistor value

[Chromatest J. Pantsmaker]

It makes sense that it would be the same as R319, which is 220K.

-------- Original Message --------
On Saturday, 08/08/26 at 13:04 Todd Sines via Synth-diy <synth-diy at synth-diy.org> wrote:

> The RE-808 is supposed to be a 1:1 clone, it also is 220k. Sorry for not opening mine up but pretty certain that is it.
>
> Todd
>
>> On Aug 8, 2026, at 3:55 PM, Pete Hartman via Synth-diy <synth-diy at synth-diy.org> wrote:
>>
>> The Yocto is an 808 clone of sorts, it has that resistor marked as 220K
>>
>> Can't speak for the OG.
>>
>> Pete
>>
>>> On Sat, Aug 8, 2026 at 2:34 PM <rburnett at richieburnett.co.uk> wrote:
>>>
>>> Does anyone know the value of R324 in the Rimshot voicing circuit of
>>> Roland's TR-808 drum machine?
>>>
>>> Seemed like a good day to ask ;-)
>>>
>>> -Richie,
>>> ________________________________________________________
>>> This is the Synth-diy mailing list
>>> Submit email to: Synth-diy at synth-diy.org
>>> View archive at: https://synth-diy.org/pipermail/synth-diy/
>>> Check your settings at: https://synth-diy.org/mailman/listinfo/synth-diy
>>> Selling or trading? Use marketplace at synth-diy.org
>>
>> ________________________________________________________
>> This is the Synth-diy mailing list
>> Submit email to: Synth-diy at synth-diy.org
>> View archive at: https://synth-diy.org/pipermail/synth-diy/
>> Check your settings at: https://synth-diy.org/mailman/listinfo/synth-diy
>> Selling or trading? Use marketplace at synth-diy.org
>
> ________________________________________________________
> This is the Synth-diy mailing list
> Submit email to: Synth-diy at synth-diy.org
> View archive at: https://synth-diy.org/pipermail/synth-diy/
> Check your settings at: https://synth-diy.org/mailman/listinfo/synth-diy
> Selling or trading? Use marketplace at synth-diy.org
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://synth-diy.org/pipermail/synth-diy/attachments/20260808/89b19f67/attachment.htm>
-------------- next part --------------

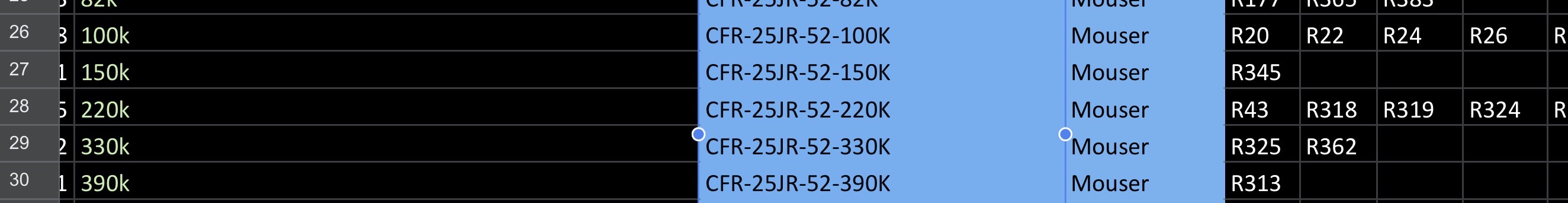

A non-text attachment was scrubbed...
