[sdiy] Tr-808 resistor value

[Todd Sines]

The RE-808 is supposed to be a 1:1 clone, it also is 220k. Sorry for not opening mine up but pretty certain that is it.
-------------- next part --------------

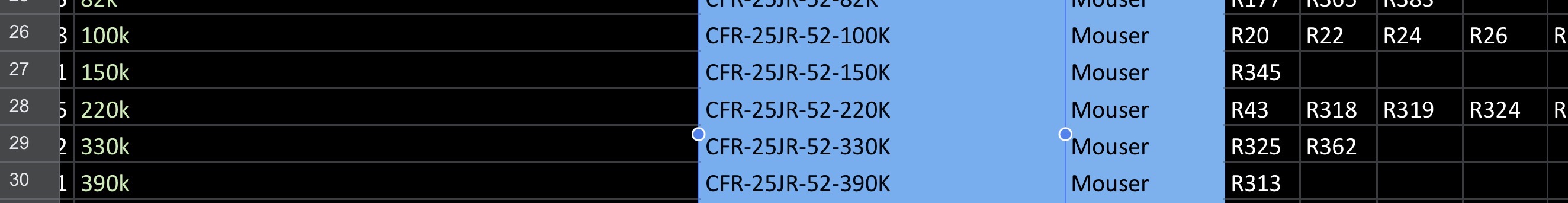

A non-text attachment was scrubbed...
Name: image0.jpeg
Type: image/jpeg
Size: 147564 bytes
Desc: not available
URL: <http://synth-diy.org/pipermail/synth-diy/attachments/20260808/5c035d4b/attachment.jpeg>
-------------- next part --------------

Todd

> On Aug 8, 2026, at 3:55?PM, Pete Hartman via Synth-diy <synth-diy at synth-diy.org> wrote:
>
> ?The Yocto is an 808 clone of sorts, it has that resistor marked as 220K
>
> Can't speak for the OG.
>
> Pete
>
>> On Sat, Aug 8, 2026 at 2:34?PM <rburnett at richieburnett.co.uk> wrote:
>>
>> Does anyone know the value of R324 in the Rimshot voicing circuit of
>> Roland's TR-808 drum machine?
>>
>> Seemed like a good day to ask ;-)
>>
>> -Richie,
