[sdiy] High-res Univox Minikorg II / 700S schematics?

[Todd Sines]

Sadly, it’s the same that I have; got the one from SynthDIY and the korganalogue.net <http://korganalogue.net/> archive.org <http://archive.org/> retrieval. And the Cykong.com <http://cykong.com/> versions are color, but still not working.

I subbed in the 800DV version but apparently it’s a little different.



Todd

> On Oct 18, 2026, at 2:59 AM, Shawn Rakestraw <shawnrakestraw at gmail.com> wrote:
>

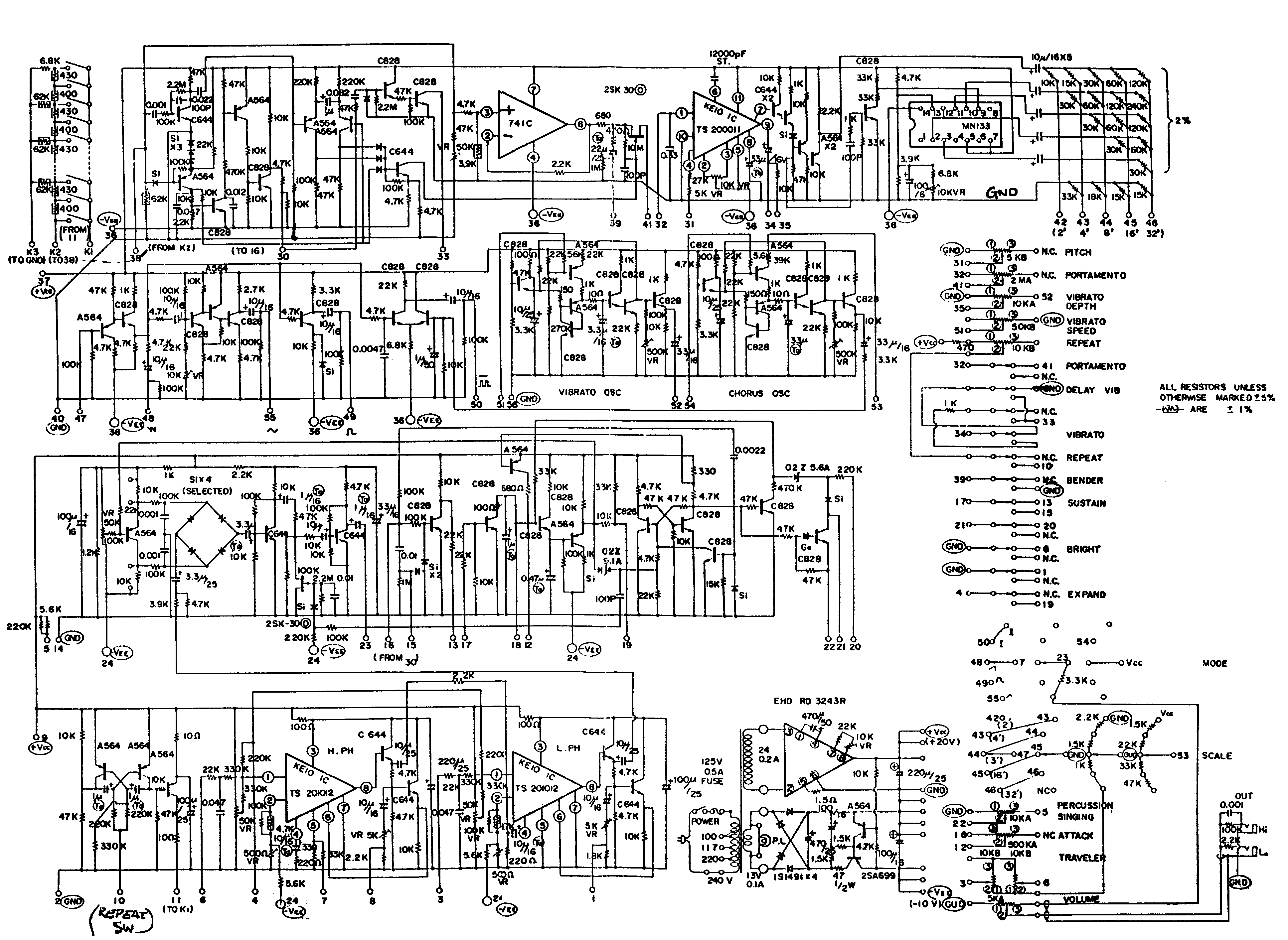

> Is this it?
>
> http://www.synthdiy.com/files/2001/700.gif
>
> On Sun, Oct 18, 2026, 12:08 AM Todd Sines via Synth-diy <synth-diy at synth-diy.org <mailto:synth-diy at synth-diy.org>> wrote:
>> Hello gang,
>>
>> Looking for some higher resolution schematics / service manual if anyone has one. The one I’m working off is 2 MB, not very detailed for a 12 page manual.
>> https://manuals.fdiskc.com/flat/Korg 700S Service Manual.pdf <https://manuals.fdiskc.com/flat/Korg%20700S%20Service%20Manual.pdf>
>> Sadly it’s too blurry to make any sense of this. The one I have from the older korganalogue.net <http://korganalogue.net/> site is also not helpful. There’s a lot of duplicate color wiring on the nets between the 3 main circuits making it a challenge to troubleshoot.
>>
>> Given the amount of fake PDFs out there I didn’t want to plunk down for a digital OM only to find out it’s just a syndication of the myriad of public domain versions.
>>
>> Thanks,
>>
>>
>>
>> Todd
>> ________________________________________________________
>> This is the Synth-diy mailing list
>> Submit email to: Synth-diy at synth-diy.org <mailto:Synth-diy at synth-diy.org>
>> View archive at: https://synth-diy.org/pipermail/synth-diy/
>> Check your settings at: https://synth-diy.org/mailman/listinfo/synth-diy
>> Selling or trading? Use marketplace at synth-diy.org <mailto:marketplace at synth-diy.org>
